Hi Peter,
I had a similar request by a customer. I guess we are only discussion the coding for Frontal Impact dummies.
So far, I investigated what we have decided before:
The
"SUMA" location is:
"just to be used with "Load Bolt" design". This comment is currently to be found
in the Database for:
H3: 3 bolts (UP,MI,LO)
HF: 2 bolts (UP,LO)
HM: 2 bolts (UP,LO)
For all the other dummies we have used
"ILAC".
Still there are two different variants availabe:
a)
ILAC with
FOX UP/LO per side
b)
ILAC with
FOX and MOY one per side
I verified the existing codes in the database and the figures and also the instrumentation
information given on the Humanetics website:
H3:
SUMA FOX UP/MI/LO (each side)
Humanetics: "Submarining Load bolts; FOX (3 per side)"
HF:
SUMA FOX UP/LO (each side)
ILAC FOX, MOY (each side)
Humanetics: "A.S.I.S. Load Cell ( Iliac Wings ); FOX,MOY (per side) "
comment in database for SUMA UP/LO: just to be used with "Load Bolt" design; use ILAC for other/more recent design
HM:
SUMA FOX UP/LO (each side) -> DB
2026-05: according to current figure and instrumentation reference:
ILAC FOX, MOY (each side)
- 2026-05-28 12_55_29-.png (4.39 KiB) Viewed 1562 times
and

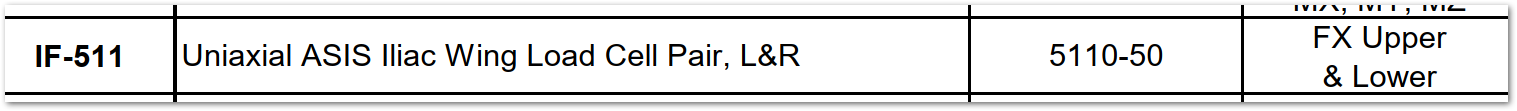

- 2026-05-28 19_50_49-H3-95th_LoadCells - PDF-XChange Editor.png (22.76 KiB) Viewed 1562 times
Y7, Y6, YW (=Y7, weighted)
ILAC FOX UP/LO (each side) -> (DB & Figure)
YA:
no codes at all in DB and no YA figures available
Humanetics: "two-Axis ASIS Load Cells; FOX UP/LO" ->
ILAC
QA, Q6:
ILAC FOX, MOY (each side) -> (DB & Figure)
BUT not listed at Humanetics?
TH, T3:
ILAC FOX, MOY (each side) -> (DB & Figure)
We should discuss tomorrow the missing or unmatched information against the Humanetics site.
Bye,
Dirk
